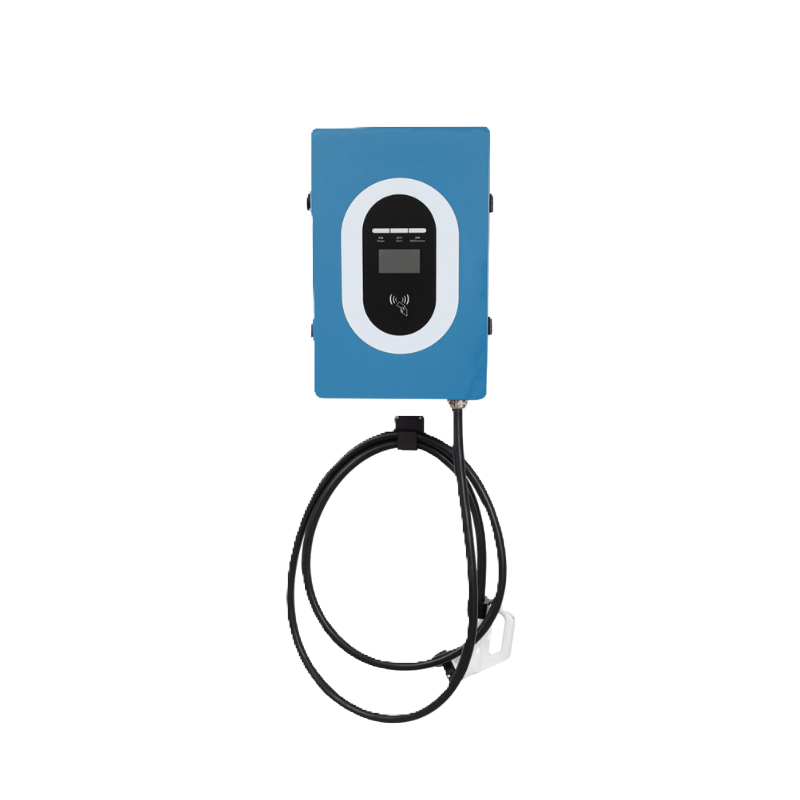

20kW Wall-Mounted DC Charging Station

კატეგორია: DC

9400.00₾

Product Specifications:


Model No.AF-DC-020-B-A-O-2-H AF-DC-030-B-A-O-2-H AF-DC-040-B-A-O-2-H
 Home Using
SpecificationRated Power20KW
 Output Current0-67A
Charging DeviceInstallation MethodWall mounted
Feeding MethodBottom in and out
Equipment Dimension410*216*620 mm
Input VoltageAC380V±15%
Input Frequency50±10HZ
Output Voltage200-（750）1000 VDC
Single Gun Output Current0-100 A
Cable Length5m ( Optional )
Metering Accuracy1.0 Level
Electrical IndicatorsCurrent Limit Protection Value≥ 110%
Voltage Stabilization Accuracy≤ ±0.5%
Current Stabilization Accuracy≤ ±1%
Ripple Ratio≤ ±0.5%
Efficiency≥ 95%
Power Factor≥ 0.99 ( Above 50% load）
Harmonic Content  THD≤5% ( Above 50% load)
Functional DesignHMI4.3- inch highlight color touch screen
Charging ModeAutomatic charging full / Fixed power / Fixed abgmount / Fixed time
Network WayEthernet / 4G
Charging MethodSwipe card / Scan code / Password
Mode Of PaymentCredit card / Scan code / Password
Operation ModeOffline no billing, Offline billing, Online billing
Communication ProtocolOCPP 1.6J
Safety DesignOperative NormIEC 61851-1:2017,ICE 62196-2:2016
Safety Function

Charging gun temperature detection, overvoltage protection, under voltage protection,

overload protection, short circuit protection, grounding protection, over temperature protection,

low temperature protection, insulation monitoring protection, polarity reverse protection,

lightning protection, emergency stop protection, leakage protection.

Environmental  IndicatorsWorking Temperature-20℃ ~ +50℃
Working Humidity5%~95% non-condensing frost
Working Altitude＜2000m
Ingress ProtectionIP54
Cooling MethodAir-cooled
Noisy Control≤60dB
MTBF30,000 hours
