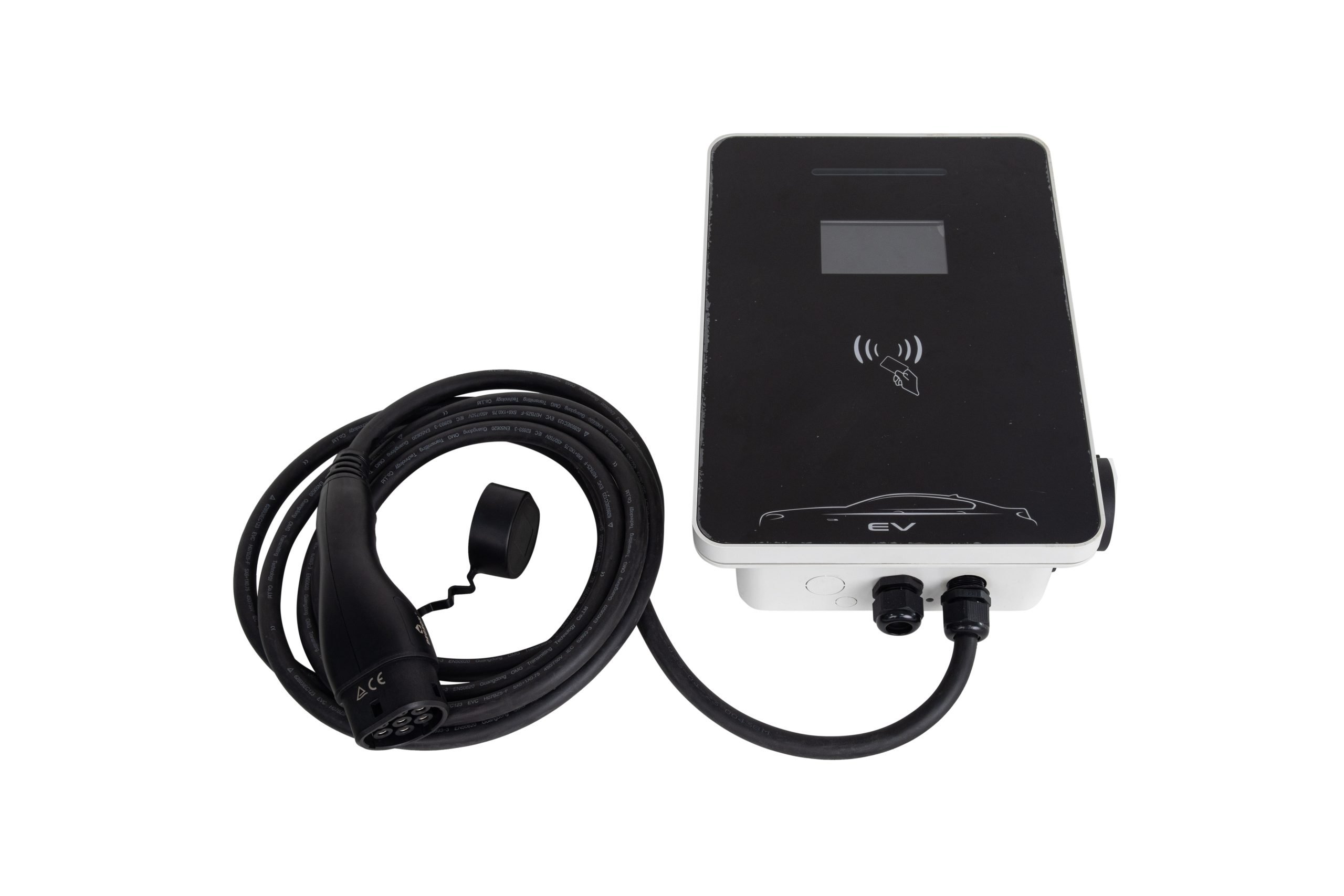

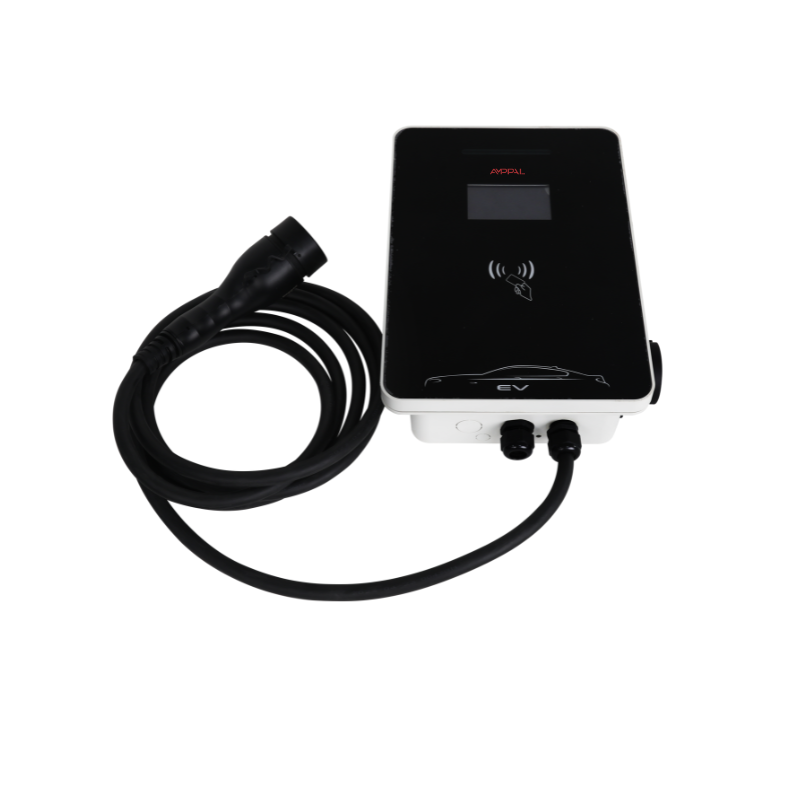

7kW Wall-Mounted AC Charging Station
კატეგორია: AC
1800.00₾
Product Characteristics:
| The AC charging station provides AC power with AC 50/60Hz and rated voltage 220V±20%. |
| Charging electric vehicles with on-board chargers is mainly suitable for the following places: |
| Large, medium, and small electric vehicle charging stations; |
| All kinds of electric vehicle parking spaces Public places, such as urban residential quarters, shopping plazas, power business places, etc.; |
| High-speed service areas, stations, docks, and other transportation hub areas; |
| Real estate and engineering Construction acceptance needs. |
| Model No. | AF-AC-07-B-A-O-1/2/3/4/5-RZ-P | ||
| Specification | Rated Power | 7kW | |
| Charging Device | Installation Method | Wall mounted | |
| Feeding Method | Bottom in and bottom out | ||
| Equipment Dimension | 340*240*110 mm | ||
| Equipment Weight | 16 KGS | ||
| Cable Length | 5m ( Optional ) | ||
| Electrical Indicators | Input Voltage | AC 220V±20%; L+N+PE | |
| Input Frequency | 50 ±10Hz | ||
| Rated Input And Output Current | 32 A | ||
| AC Power Supply | AC 220V±15% | ||
| Current Limit Protection Value | ≥110% | ||
| Electrical Indicators | ≥11 | ||
| Metering Accuracy | 1.0 Level | ||
| Functional Design | HMI | 4.3 Inch screen, LED indicator strip | |
| Charging Mode | Automatic charging full / Fixed power / Fixed Amount / Fixed time | ||
| Networking Method | Ethernet, 4G, WIFI | ||
| Mode Of Payment | Credit card / Scan code | ||
| Charging Method | Swipe Card / Scan code | ||
| Operation Mode | Offline no billing, offline billing, online billing | ||
| Dynamic Load Balance | YES | ||
| Communication Protocol | OCPP 1.6J | ||
| Safety Design | Operative Norm | IEC 62196-2:2016；IEC61851-1:2017 | |
| Safety Function | Charge gun temperature detection, over voltage protection, under voltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, insulation monitoring protection, polarity reverse protection, lightning protection, emergency stop protection, leakage protection | ||
| Environmental Indicators | Working Temperature | -20℃~+50℃ | |
| Working Humidity | 5%~95% non-condensing frost | ||
| Working Altitude | ≤2000m | ||
| Ingress Protection | IP54 | ||
| Cooling Method | Natural air cooling | ||
| Noisy Control | ≤40dB | ||
| MTBF | 30,000hours | ||
