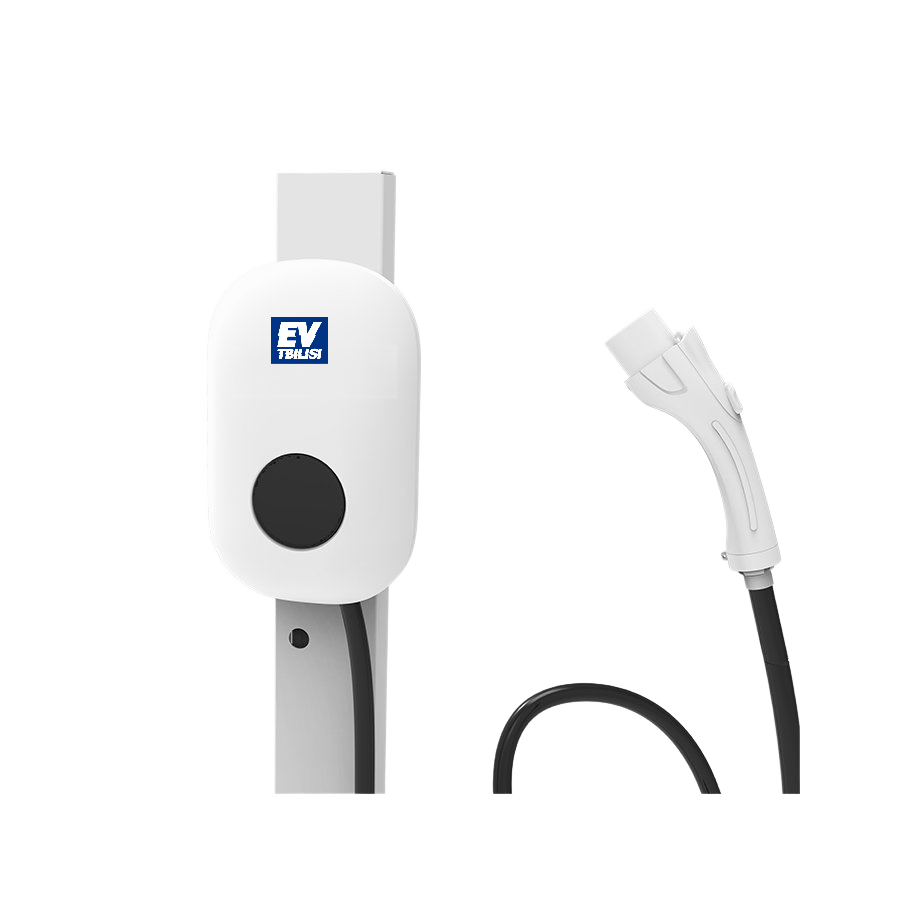

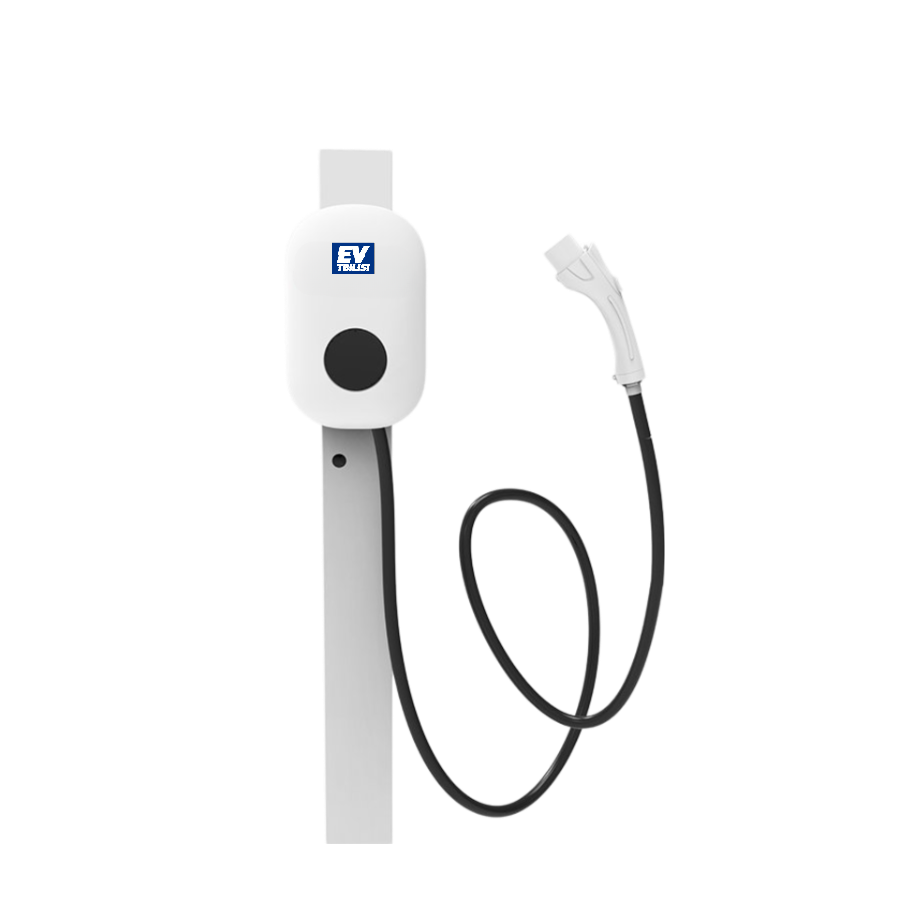

7kW Floor-Standed AC Charging Station

კატეგორია: AC

1500.00₾

Product Characteristics:

• One installation method: Floor standing mounted ;
• Adopt AC 220VAC input;
• Using LED lights with different colors and different flash frequencies to indicate the current state of the charger;
• Using WIFI module to interact with the user’s mobile phone or laptop and other devices through wireless communication;
• Use the web and app to set the charging current, remotely stop charging, and monitor charging data;
• The shape adopts an ABS plastic structure.

Model No.:  AF-AC-07-L-A-O-1-SF
Rated Power:  7KW
Installation Method:  Floor-Standed
Feeding Method:  Bottom in and bottom out
Equipment Dimension:  304*191*95 mm
Equipment Weight:  3 KGS
Cable Length:  5m ( Optional )
Input Voltage:  AC 220V±20%; L+N+PE
Input Frequency:  50 Hz ±10%
Output Voltage:  AC 220V±20%
Output Current:  32 A
Current Limit Protection Value:  ≥110%
Electrical Indicators:  ≥11
Metering Accuracy:  1.0 Level
HMI:  LED indicator strip
Mode of Payment:  APP
Charging Method:  Plug and charge
Networking Method:  Bluetooth / WIFI / APP
Operative Norm:  IEC  61851-1:2017; IEC 62196-2:2016
Safety Function:  Overvoltage protection, undervoltage protection, overload protection.
Working Temperature:  -20℃~+50℃
Working Humidity:  5%~95% non-condensing frost
Working Altitude:  ≤2000m
Ingress Protection:  IP54
Cooling Method:  Natural air cooling
Noisy Control:  ≤40dB
MTBF:  30,000hours
