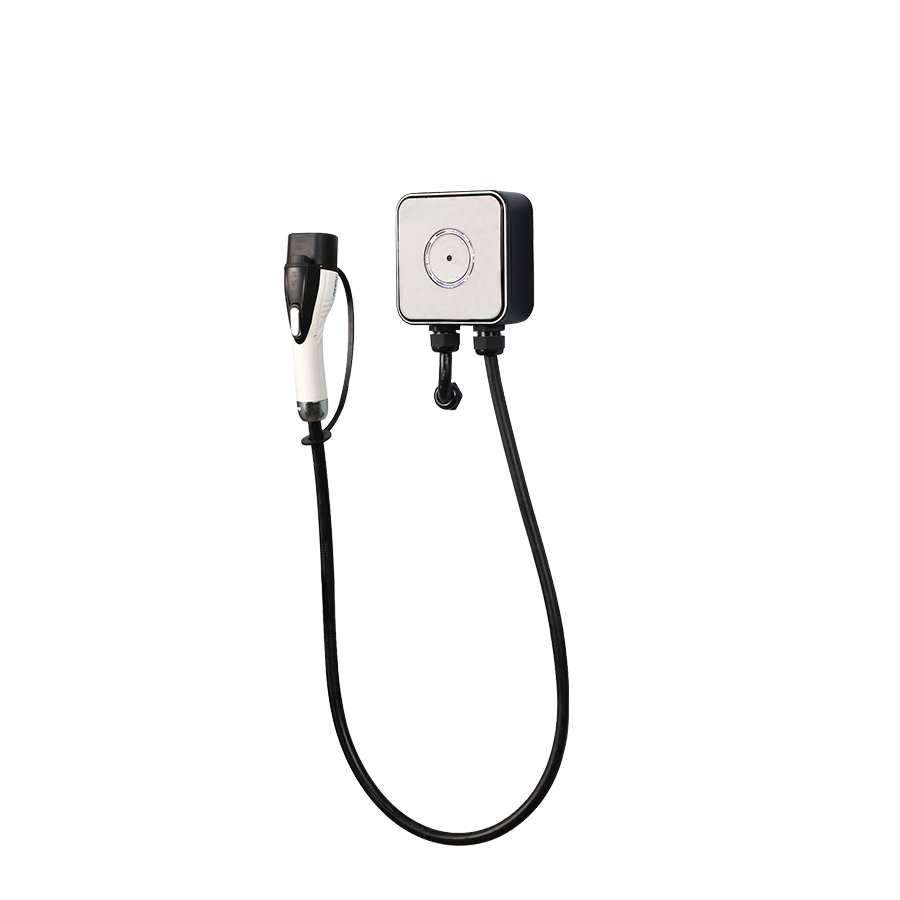

3.5kW Portable AC Charging Station

კატეგორია: AC

800.00₾

Product Characteristics:

• Housing material: thermoplastic, flame retardant grade UL94 V-0
• Terminal: Copper alloy, silver plated on the surface
• Working environment temperature: -20℃ ~+50℃
• Rated working current: 16A/32A
• Working voltage: 250V
• Insulation resistance: >1000MQ(DC500V )



Model No.: AF-AC-3.5kW and AF-AC-07kW

Specs:
Rated Power: 3.5kW and 7kW

Rated Current: 16A and 32A
Cable Length: 5m ( Optional )
Equipment Weight: 2 KGS

Input Voltage: AC 220V±20%; L+N+PE
Input Frequency: 50 ±10 Hz
Output Voltage: AC 220V±20%, L+N+PE
Insulation Resistance: ＞10MΩ
Contact Resistance: ≤0.5mΩ
Inspection&Extraction Force: ≤100N

HMI: LED indicator strip
Charging Method:  Plug and charge

Operative Norm:  IEC 62752: 2016

Working Temperature: -20℃~+50℃
Working Altitude: ≤2000m
Working Humidity: 5%~95% non-condensing frost
Ingress Protection: IC-CPD IP67,  Vehicle Connector IP54
Working Altitude: ≤2000m
Ingress Protection: IP54
Cooling Method: Natural air cooling
Noisy Control: ≤40dB
MTBF: 30,000 hours
